  1. Bots
  2. Datafeed

Overview of Streams

Last updated 2 months ago

Was this helpful?

A Stream is like a container for messages exchanged between two or more users via a given 1 to 1 chat (IM) or chat room.

Each Stream has a unique ID also known as a Conversation ID, that is returned when the IM or chat room is created using the , , and endpoints respectively. This ID can then be used in subsequent endpoints to perform operations on the IM or chat room.

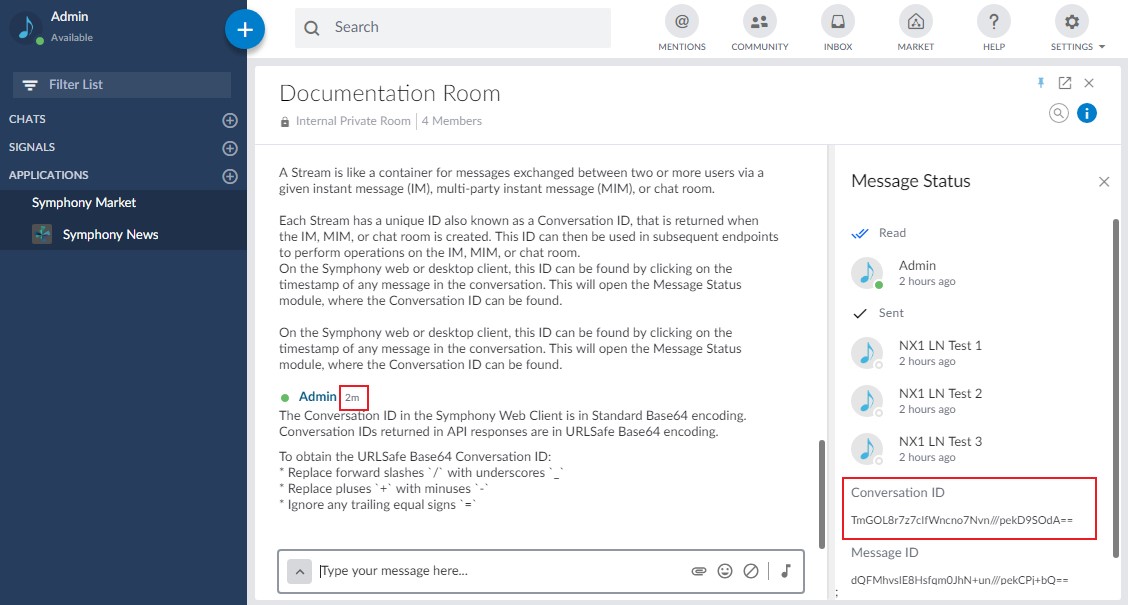

On the Symphony Messaging web or desktop client, this ID can be found by clicking on the timestamp of any message in the conversation. This will open the Message Status module, where the Conversation ID can be found, as shown in the following picture.

The Conversation ID in the Symphony Messaging Web Client is in Standard Base64 encoding and need to be converted to be URLSafe. Conversation IDs returned in API responses are already URLSafe Base64 encoding.

URLSafe Base64 Conversion

To obtain the URLSafe Base64 Conversation ID:

  • Replace forward slashes / with underscores _

  • Replace pluses + with minuses -

  • Ignore any trailing equal signs =

For example, the URLSafe Base64 encoding oflX1hwfmQ+AK/k/a/BB0y2n///q2+0KfbdA== converts to lX1hwfmQ-AK_k_a_BB0y2n___q2-0KfbdA.

The following list shows the existing endpoints:

Create IM
Create IM non-inclusive
Create Room v3
Update Room v3
Room Info v3
De/Re-activate Room
Room Members
Add Member
Share
Remove Member
Promote Owner
Demote Owner
Search Rooms v3
List User Streams
Stream Info v2
List Streams for Enterprise v2
Stream Members
Create Instant Message
Create Non-inclusive Instance Message
Create Room v3
